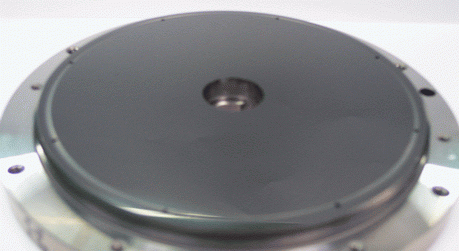

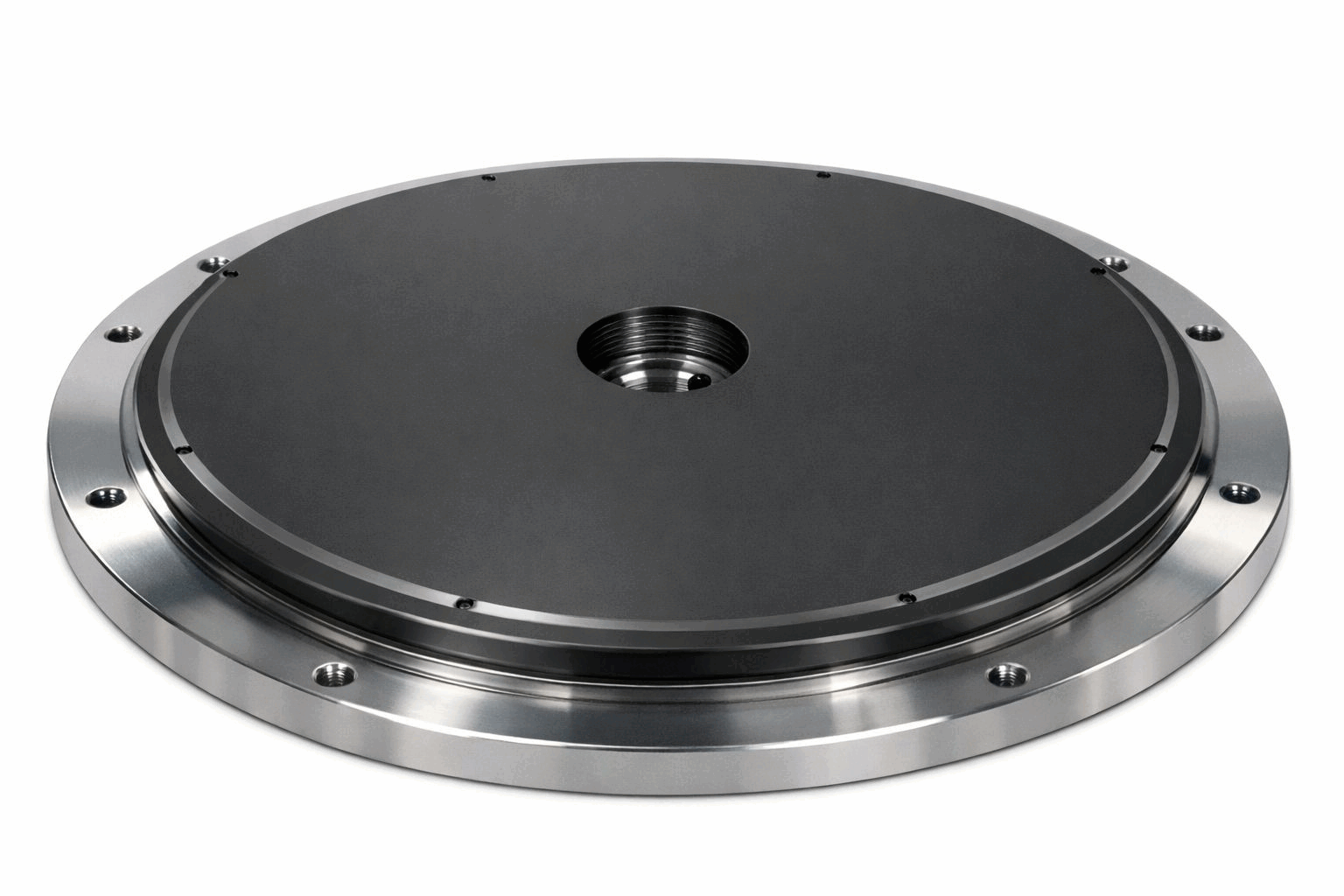

S-DLC Coating



















Function:
The stamper touch on the uniform and denser apexes of mirror surface to create heat resistance.

Effects:
1. Lower friction, prolong life of mold, mirror plate, and stamper.
2. Keep stamper at constant temperature when forming the disc. As the molten polycarbonate flows out from the center, the temperature curve decreases more smoothly; thus, allowing the grooves and pits to be formed more easily, which can improve the yield rate and shorten the cycle time. (In this case, the time required for formation).

Application:
Applied in molds (Ex: Seikoh Giken F-type), DVD-R mold, and Blue-ray Disc.
Features
Appearance:
- Waves on the mirror.
- Foggy and white color. (Could not be focused the waves by microscope)
S-DLC coating performance:
Micro-hardness:Hv 3000
Coating thickness: 3μm
Excellent Adhesion
