TiN Coating










The TiN coating is originally applied in the process of hard coating. It is most commonly used for the production of hard film due to its strong resistance towards wear, heat, and corrosion.
Color of TiN coating: gold
Micro-hardness of TiN coating: Hv2300
Thickness of TiN coating: 1-4µm
Thermal tolerance of TiN coating: 500º C
Coefficient of friction of TiN coating: 0.4
Adhesive force of TiN coating: >60N
Coating temperature of TiN: <500ºC
Materials of substrate: SUS, HSS, SKD61, WC, ceramics, glass, Al alloy, Ti alloy, etc.

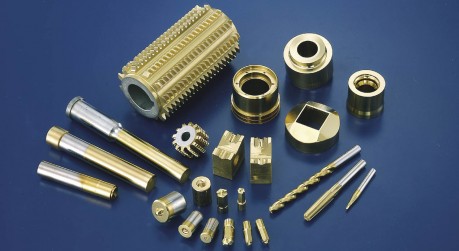

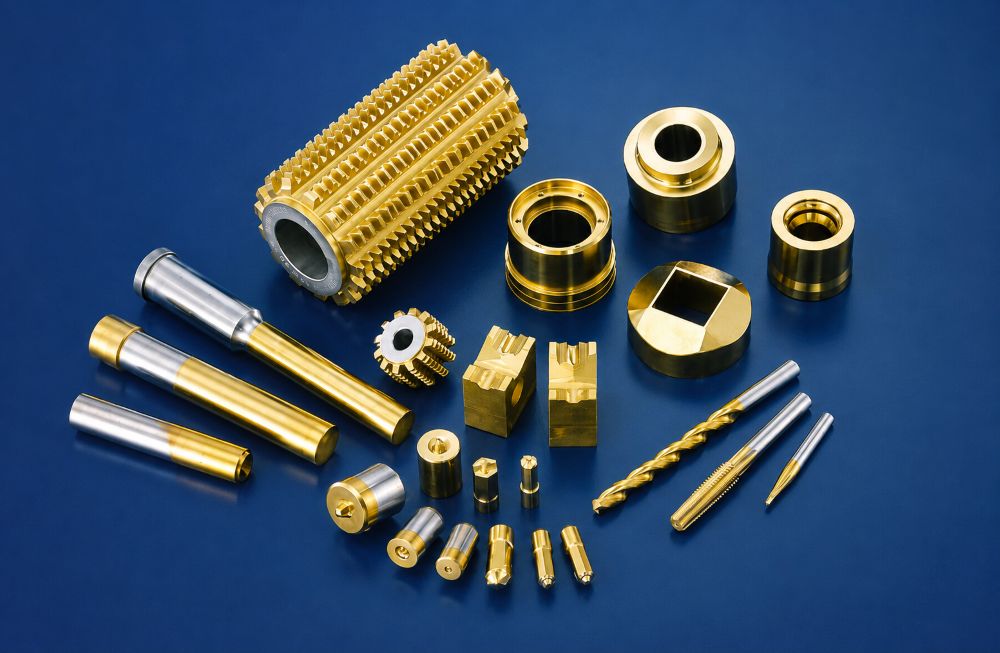

Application: cutting tools, punches and dies for cold working, plastic mold, mechanical parts, decorative parts, etc.
